Product model: ZCW
Nominal diameter: DN4~50mm
Nominal pressure: PN0.5~1.0MPa
Applicable temperature: ≤180°C
Applicable medium: liquid, gas, oil
Product overview
Zero pressure start diaphragm solenoid valve is suitable for controlling liquid, gas, light oil (≤20CST) and other media, using direct-acting and step-by-step 2 direct-acting structure, zero-pressure opening valve, large flow and high reliability. The body is made of brass (hot forged), stainless steel SS304 (precision casting), this series is available in a variety of versions, which can be selected according to control needs.

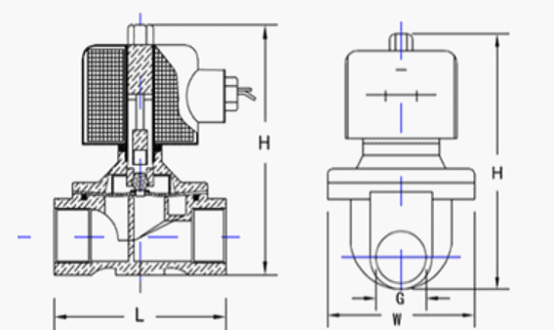

Connection size
|
Interface G |
diametermm |
Cvvalue |
L |
H/Normally open/explosion-proof |
work pressure（bar) |
|
|
Normally closed |
Normally open |
|||||
|
1/8 |
2.5 |
0.25 |
40.5 |
75/--/-- |
0～10 |
0～6 |
|
1/4 |
2.5 |
0.25 |
40.5 |
75/--/-- |
0～10 |
0～6 |
|
1/4 |
4 |
0.6 |
54 |
75/--/-- |
0～10 |
0～6 |
|
3/8 |
4 |
0.6 |
54 |
90/--/-- |
0～10 |
0～6 |
|
3/8 |
10 |
4.8 |
68 |
117/--/-- |
0-10 |
0～6 |
|
1/2 |
15 |
4.8 |
68 |
117/135/125 |
0～10 |
0～6 |
|
3/4 |
20 |
7.6 |
73 |
123/142/135 |
0～10 |
0～6 |
|
1 |
25 |
12 |
99 |
135/150/150 |
0～10 |
0～6 |
|
11/4 |
32 |
24 |
110 |
154/190/190 |
0～10 |
0～6 |
|
11/2 |
40 |
29 |
120 |
162/190/190 |
0～10 |
0～6 |
|
2 |
50 |
48 |
154 |
185/215/202 |
0-10 |
0～6 |
