Nominal Size：40*50/50*80/65*80/80*100*150/150*200
Pressure Rating：PN6/PN10/PN16;CL150(PN20)
Operateing Temperature：-17℃~200℃
Characteristics：Quickly open
Rangeability：/
Seat Leakage Class：ANSI B16.104: IV、V、VI
Body Material：WCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc.
Trim Material：304+ST/304+RTFE etc.
Seal Material：PTFE, Flexible graphite
Product Features
The Discharge Valve is a special single seat regulating valve. The valve body adopts an integrated DC Y-shaped structure, and the valve chamber has no obstructed flow channels. The inner surface is sandblasted, and the valve has no dead corners. Suitable for on-off control of fluids that are prone to precipitation or contain particles in industries such as fine chemicals and pharmaceuticals.

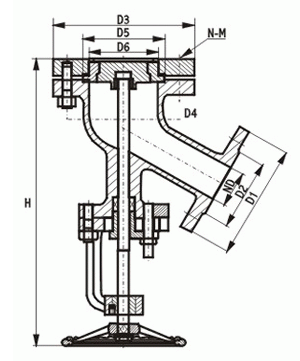

Connection size
| DN |
|
|
Lower flange | Sealing seat | ||||||||
| D1 | D2 | D3 | D4 | D5 | D6 | |||||||
| 25 | 115 | 85 | 135 | 100 | 70 | 40 | ||||||
| 32 | 135 | 100 | 145 | 110 | 75 | 55 | ||||||
| 40 | 145 | 110 | 160 | 125 | 100 | 65 | ||||||
| 50 | 165 | 125 | 180 | 145 | 85 | 70 | ||||||
| 65 | 180 | 145 | 195 | 160 | 135 | 90 | ||||||
| 80 | 195 | 160 | 215 | 180 | 155 | 130 | ||||||
| 100 | 215 | 180 | 245 | 210 | 195 | 135 | ||||||
| 125 | 245 | 210 | 280 | 245 | 180 | 145 | ||||||
| 150 | 280 | 240 | 335 | 295 | 210 | 185 | ||||||
| 200 | 335 | 295 | 405 | 355 | / | / | ||||||
