Product model: D71X
Nominal diameter: DN25~150mm
Nominal pressure: PN0.6~1.0MPa
Applicable temperature: ≤85℃
Applicable media: beer, dairy, beverage, pharmaceutical, etc
Main material: SUS304, SUS316L stainless steel, etc
Product overview
Sanitary clamp butterfly valve is according to the standard: ISO, DIN, IDF, SMS, 3A, etc., the material has stainless steel sus304 and sus316L, the sealing ring material has EPDM, NBR, PTFE. It can meet the requirements of various media in the field of food and biopharmaceutical, and it is smooth and seamless suitable for steam cleaning.
Product characteristics
1, the valve body adopts detachable connection, simple structure, easy maintenance.
2, the shape is light and beautiful, the surface is bright and not sticky dust, no burr stabbing hands.
3, steel parts are made of stainless steel, rubber food rubber, high health quality.
4, the opening and closing range is 0 ~ 90 degrees, can be fixed at the position of every 15 degrees, with adjustable, and open and close quickly, easy to operate.

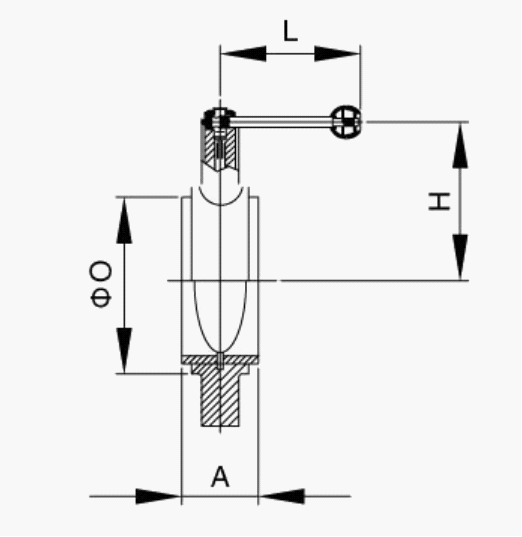

Main contour connection dimensions
|
（SIZE） |
A |
O |
L |
H |
|
DN25 |
36 |
65 |
125 |
122 |
|
DN32 |
36 |
70 |
125 |
122 |
|
DN40 |
36 |
80 |
130 |
122 |
|
DN50 |
42 |
95 |
130 |
127 |
|
DN65 |
44 |
108 |
130 |
133 |
|
DN80 |
44 |
125 |
140 |
142 |
|
DN100 |
50 |
157 |
160 |
155 |
|
DN125 |
56 |
183 |
200 |
160 |
|
DN150 |
56 |
207 |
200 |
190 |
|
DN200 |
60 |
252 |
220 |
240 |
|
DN250 |
68 |
300 |
||
|
DN300 |
74 |
345 |
||
|
DN350 |
80 |
410 |
